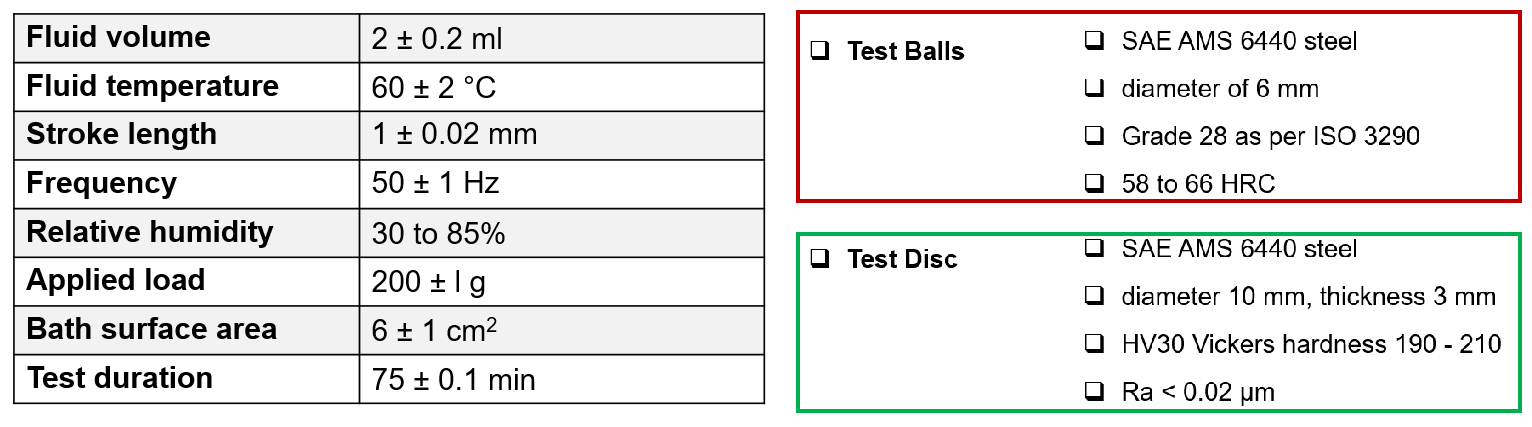

The HFRR test method as per ASTM D6079 evaluates the lubricity of diesel fuels and biodiesel blends that are used in diesel engines. The fluid under test is placed in a temperature-controlled reservoir. A steel disc is placed in the reservoir completely submerged in the fluid. A steel ball is loaded onto the disc under a fixed load. The steel ball connected to a vibrator arm reciprocates at high frequency and fixed stroke against the stationary disc resulting in a scar on the ball. The wear scar diameter is an indicator of the lubricity of the diesel fuel. The working principle is shown in Figure 1, and the test conditions, ball/disc specifications are shown in Table 1.

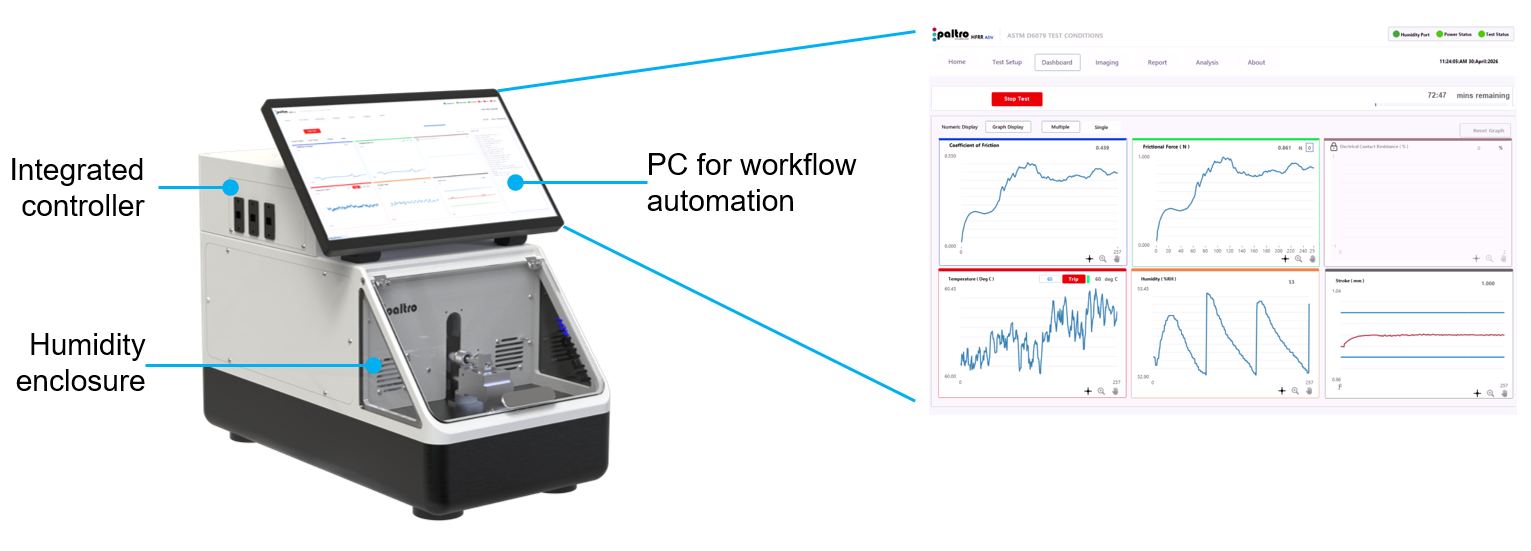

The HFRR-ADV is a compact, fully automated desktop instrument engineered for precise evaluation of fuel lubricity in compliance with internationally recognized standards, including ASTM D6079, ISO 12156, and ASTM D7688. Designed for diesel fuels and biodiesel blends, the system combines state-of-the-art control, sensing and data acquisition technology with an intuitive, space-efficient form factor (Figure 2).

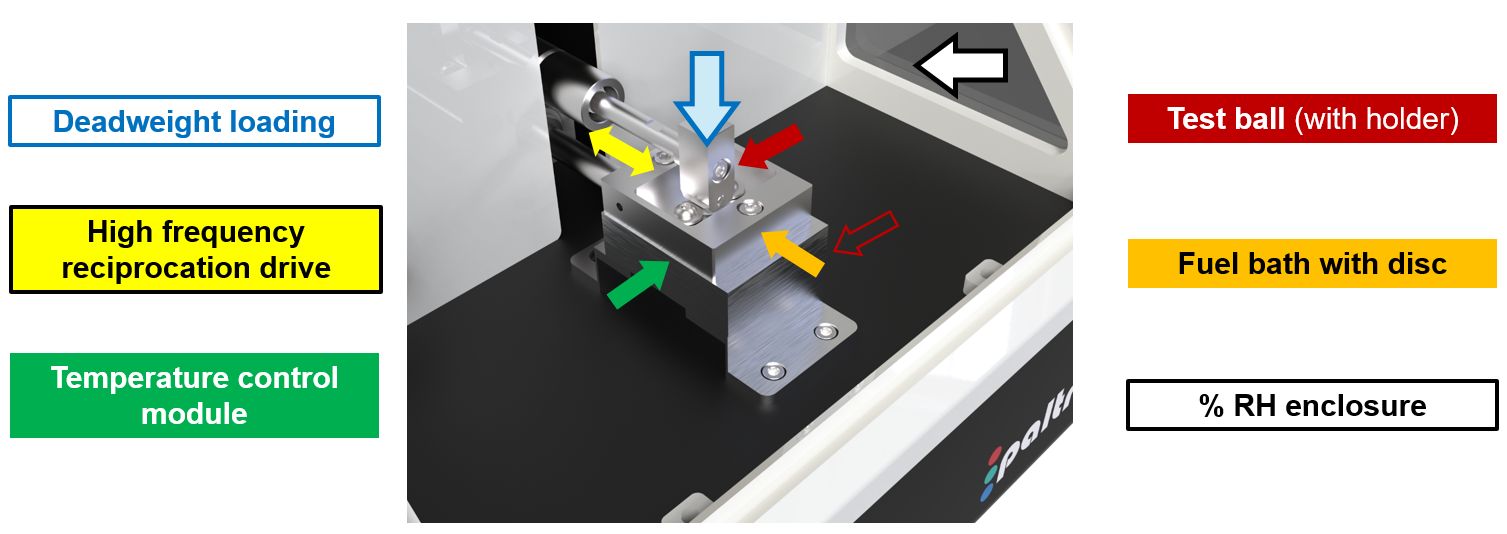

The HFRR-ADV features a compact, ergonomic tabletop design with a test area that is easy to view and access, ensuring straightforward operation. It combines the electronic controller, automatic humidity control system, and HFRR test unit into a single, space-efficient cabinet, minimizing its footprint and preserving valuable laboratory space.
The HFRR-ADV incorporates a unique built-in deadweight loading system that consistently applies 200 g load between the ball and disc. This integrated design eliminates the need for separate deadweights, additional accessories, and manual intervention.

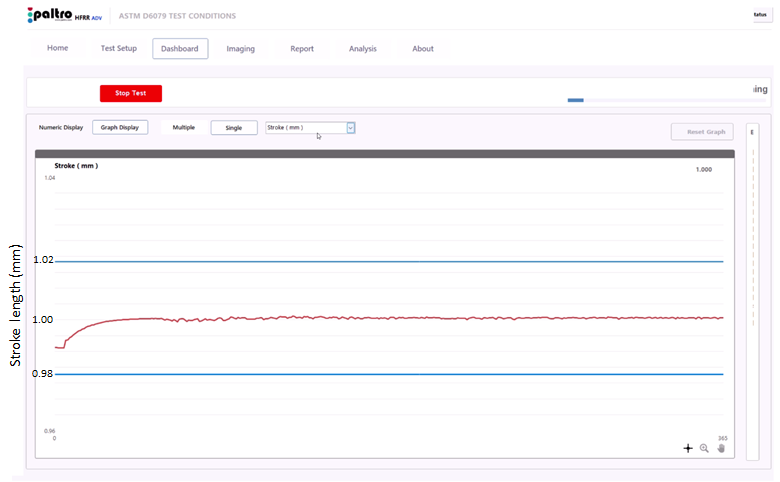

The ball holder is mounted on a push rod driven by an electrodynamic vibrator, generating a stroke of 1 ± 0.02 mm in compliance with ASTM D6079 and ISO 12156 standards. The displacement of the holder during the reciprocating motion is sensed by a precision LVDT sensor; the measured value is used as feedback by the controller to control the stroke length. The inline stroke length acquisition system (Figure 3) allows for precise electronic calibration.

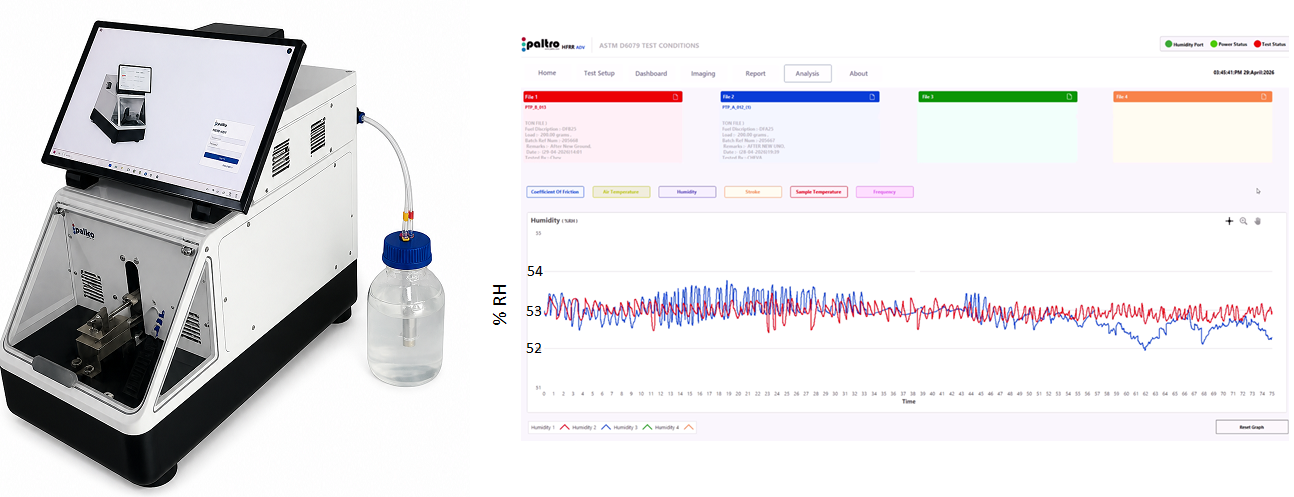

The integrated high-precision humidity control system is salt-free and requires only distilled water (Figure 4) to maintain accurate humidity levels. It uses separate humidification and dehumidification modules midity control close to 53 ± 2 %RH (Figure 4). Fully computer-controlled and automated, the system complies with ISO 12156-1 laboratory requirements. Air temperature and humidity are continuously measured and recorded throughout the entire test duration.

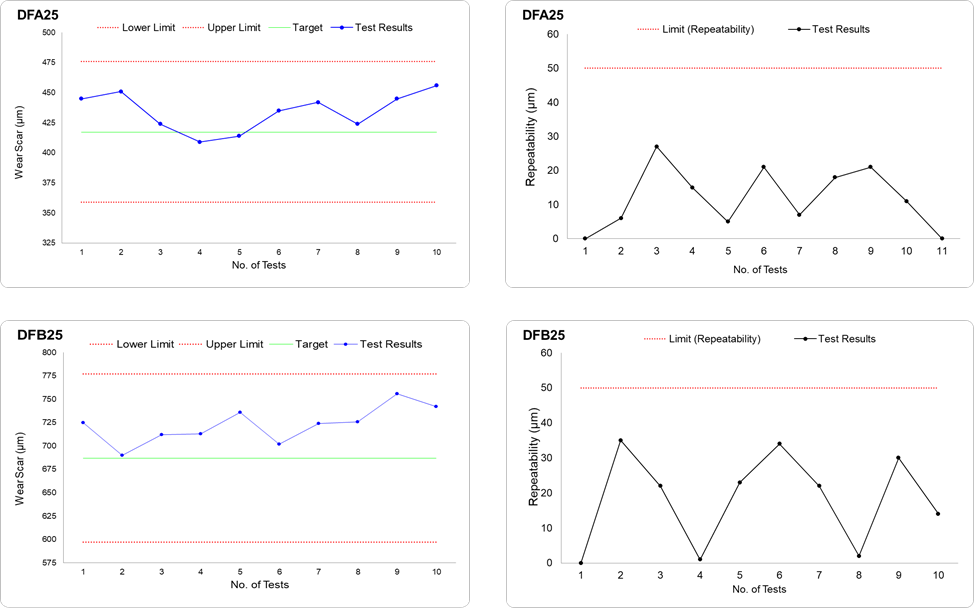

The HFRR-ADV is calibrated and verified in accordance with ASTM D6079 using both low- and high-lubricity reference fluids (DFA and DFB), (Figure 5) each with defined acceptance limits based on the ASTM TMC Certificate of Analysis. In addition, automated workflows generate a unique digital instrument record, enhancing the reliability and credibility of datasets produced for unknown fuels in both intra-laboratory and inter-laboratory programs.

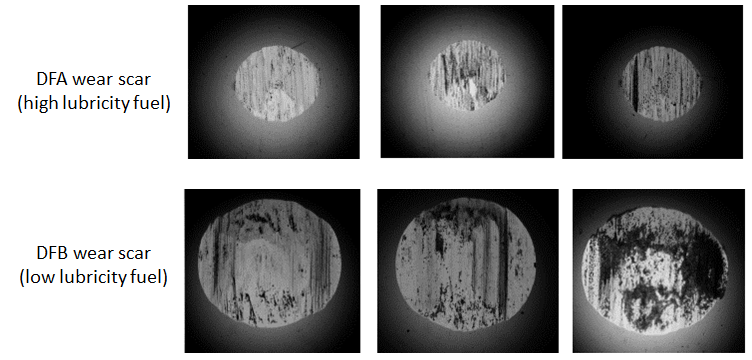

Representative wear scars for DFA and DFB fluids is shown in Figure 6
